Main Features

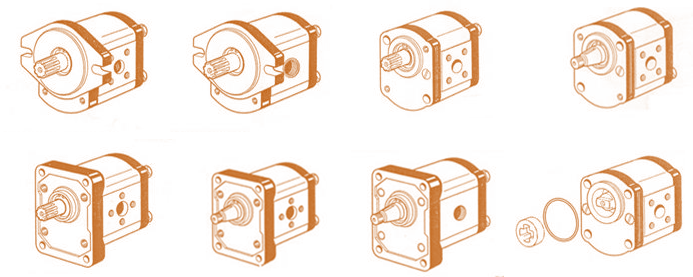

The pumps of group 2 series come from the long experience of R&D Technicians. They are built up in 3 pieces with one aluminium extruded body. The cast iron covers gives the pump a longer life and reduces overall noise level.
Technical data
- Cast iron covers for high performances
- Extruded aluminium body
- Working pressures: up to 300-bar/4351 psi max. Continuous working
- Axial compensation for the maximum efficiency
- High volumetric efficiency
- Capacities from 4 up to 31cc/rpm - 0.244 to 1.891 cu in/rpm
- The tooth profile of the gear is accurately designed to reduce the noise level
- Wide range of flanges, shafts and connections compatible with most of the market standards.
- High and low temperatures seals availability
- Unidirectional and bidirectional pumps and motors
- Possibility for tandem pumps with aluminium and the other series of Pumps.
